Scene Graph

The scene graph manages robot connectivity and provides the foundation for environment modeling.

The scene graph is the core data structure in Tesseract that manages the connectivity of links and joints in your robot and workcell. It inherits from Boost Graph, giving you access to the full suite of Boost graph algorithms for traversal, search, and analysis.

Overview

A scene graph represents relationships between links (rigid bodies) and joints (connections with degrees of freedom). While most robots are naturally tree-structured (each link has exactly one parent), Tesseract's scene graph supports acyclic graphs — multiple paths can connect the same nodes, which is essential for modeling closed kinematic chains, parallel mechanisms, and complex workcells.

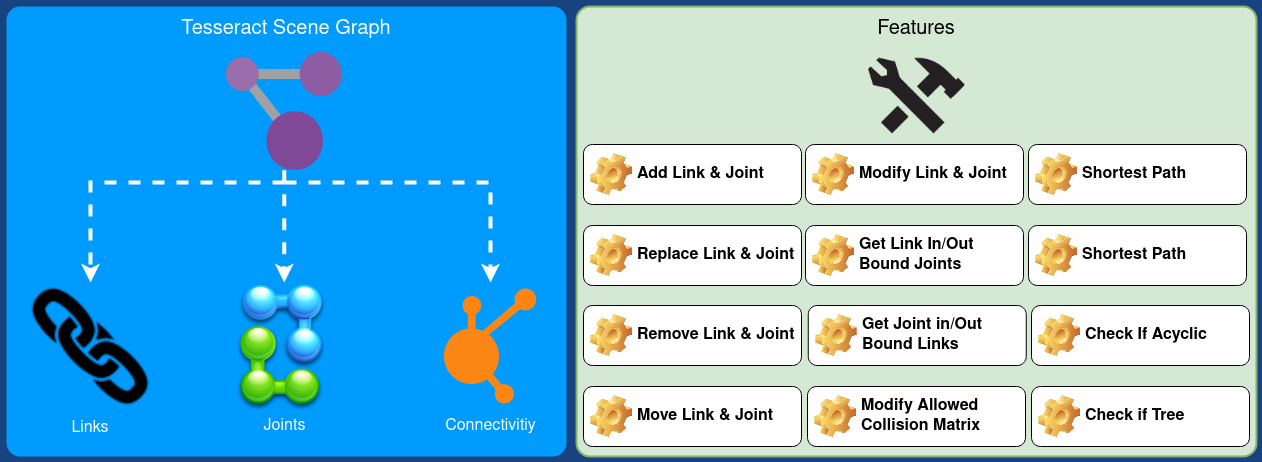

Scene Graph Architecture

Tree Structure

In a typical serial manipulator, each link connects to the next through a single joint, forming a tree:

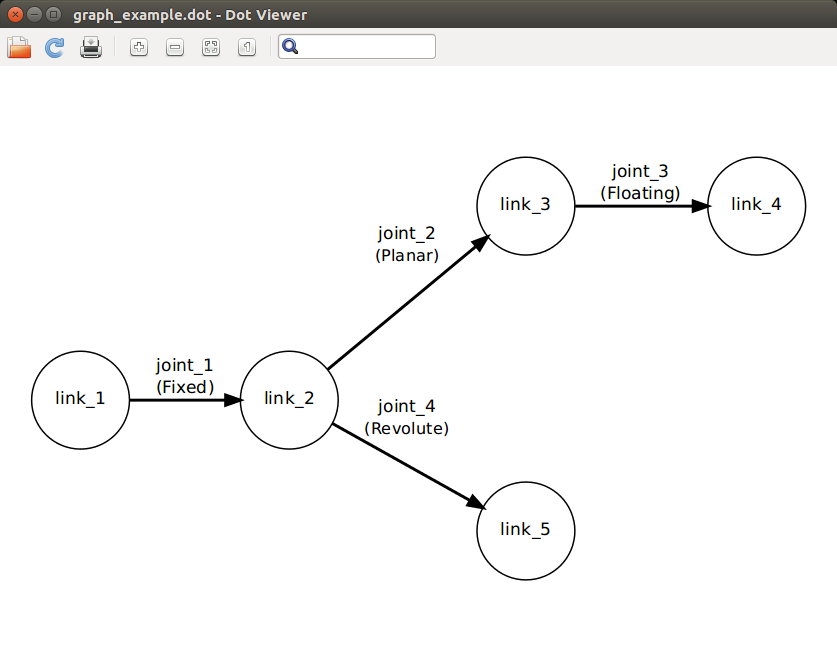

Scene Graph (Tree)

Acyclic Graph Structure

When additional joints connect non-adjacent links (e.g., a parallel gripper mechanism or a closed-chain robot), the graph becomes acyclic but is no longer a tree:

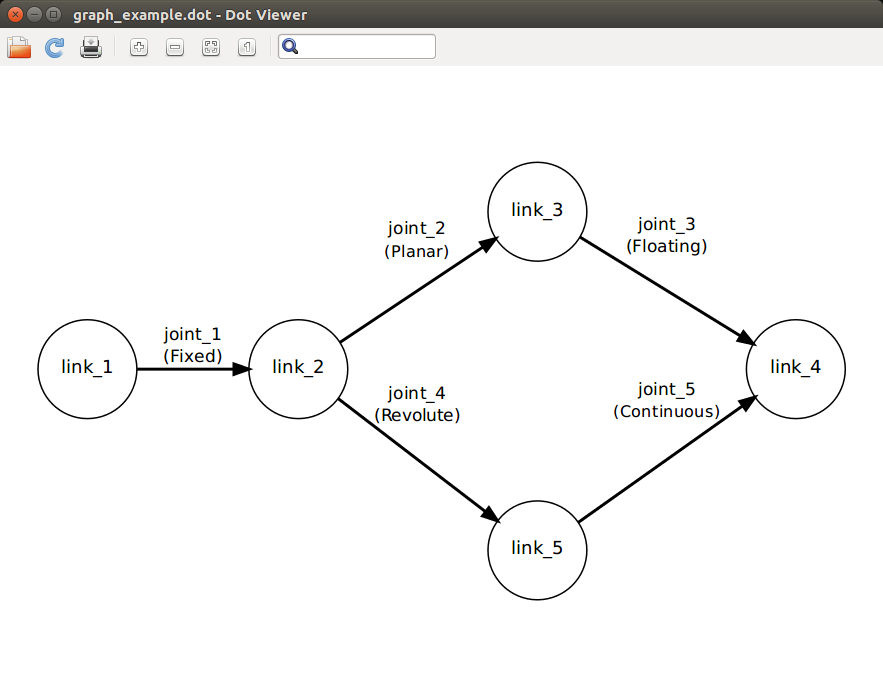

Scene Graph (Acyclic)

Features

The scene graph provides the following capabilities:

• Links — Get, Add, Remove, Modify, Show/Hide, and Enable/Disable Collision
• Joints — Get, Add, Remove, Move, and Modify
• Allowed Collision Matrix — Get, Add, Remove entries
• Graph Functions
  • Get inbound/outbound joints for a link
  • Check if graph is acyclic
  • Check if graph is a tree
  • Get adjacent/inverse-adjacent links for a joint
• Utility Functions
  • Save graph to Graph Description Language (DOT) for visualization
  • Get shortest path between two links
• Parsers
  • URDF Parser
  • SRDF Parser
  • KDL Parser
  • Mesh Parser

Examples

Tesseract provides several example programs demonstrating scene graph operations:

• Building a Scene Graph — Manually construct links and joints, inspect the graph, detect unused links, create acyclic graphs, and compute shortest paths
• Loading from URDF — Parse a URDF file into a scene graph using a resource locator for package:// resolution
• Parsing SRDF — Load semantic information (allowed collision matrix, groups, etc.) and apply it to an existing scene graph
• Parsing Meshes — Load mesh files which can be assigned to links in the scene graph

Key Concepts

Resource Locator

Because Tesseract is ROS-agnostic, you need to provide a resource locator for resolving package:// URIs in URDF files. This is a simple interface you implement to map package names to filesystem paths. See the URDF loading example for a complete implementation.

Graph Visualization

You can export any scene graph to DOT format for visualization with Graphviz:

scene_graph->saveDOT("/tmp/my_robot.dot");

Then visualize with:

dot -Tpng /tmp/my_robot.dot -o /tmp/my_robot.png

Structural Analysis

The scene graph can verify its own structure at runtime:

bool is_tree = scene_graph->isTree();
bool is_acyclic = scene_graph->isAcyclic();

A graph that is not a tree but is acyclic contains parallel paths (closed chains). A graph that is not acyclic contains cycles and is invalid for kinematic computations.

Next Steps

• Universal Robot Description Format (URDF) — Learn about the robot description format that populates the scene graph
• Semantic Robot Description Format (SRDF) — Add semantic information (groups, collision rules) to your scene graph
• Tesseract Environment — See how the environment wraps the scene graph with state solving and collision checking
